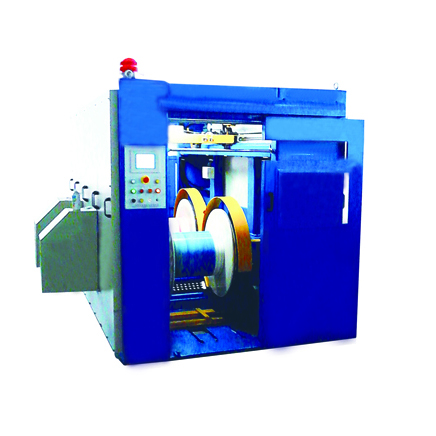

Automatic Dual Reel Take-Up
Application
Cabinet frame type. It consists of take-up unit. spool-lifting and loading unit, traversing unit, cable-catching and cutting unit, and main frame. Suitable spool type is PN800mm and PN630mm. PLC logical control is adopted. Touch screen is equipped.
Specification
| Spools size | PN800mm |
|---|---|
| Take-up speed max | 450m/min |
| Spool weight | 200kg |
| Motor for take-up | AC 3KW |
| Motor for traversing | Servo 750w |
| Drum Dimension Flange | 630mm x 800mm |
| Drum Dimension Outer width | 475mm x 600mm |
| Drum Dimension Barrel | 250mm x 400mm |
| Drum Dimension Reel bore dia. | 56mm and 80mm |
