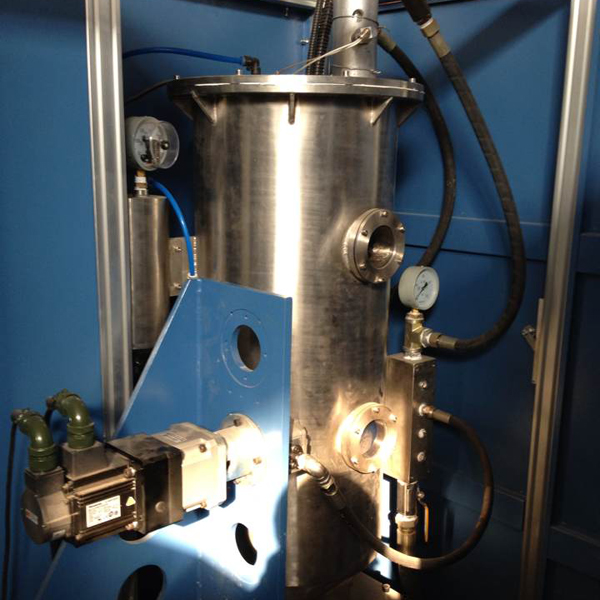

Gel filling device and bubble remover device
Application
The device is used for optical fiber secondary coating line. Good effect for bubble removing and one set of the device for four set of optical fiber sencondary coating line.
Main technical data
| The capacity of jelly barrels | 150L |
|---|---|
| Maximum output | 3.2L/m |
| Heater Power | 2Kw |
| vacuum pump flow | 2.1L/S |
| Vacuum range | -0.07Mpa ~ -0.09Mpa |
| Dimension (L×W×H) | 1400mm×1100mm×2500mm |
| Size of barral (InnerDiemeter x Height) | 400mm x 1200m |
