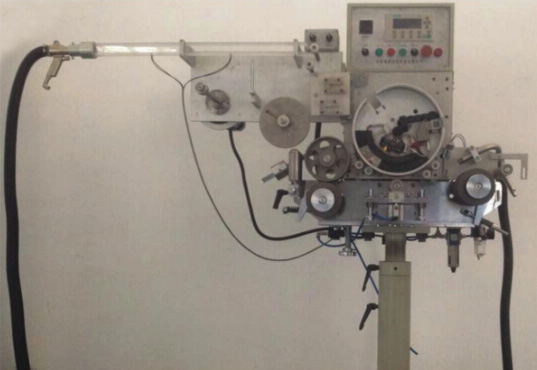

Length number and printer device
Application
The device is an independent case. The active means of heating and pressing the color band and the accurate metering wheel have be applied. Some signs (such as factory’s name, type and length etc) can be printed on the cable. In order exchange the color band conveniently, the double reels stand has been designed. At the same time, the denominator and the color band can be exchange for the different users.
Main technical data
| Metering range | 0~99999m |
|---|---|
| Metering accuracy | 0.2% |
| Bobbin belt size | 1km and 20km |
| The width of bond | 10mm/8mm |
| The color of belt | white, yellow |
| Motor | servo motor |
| Cable diamter | Φ5 – 100mm |
| Line speed | Max. 80m/Min |
